AEDT connect session example#

This example shows how to use the Common AEDT API to connect to an existing AEDT session, create a HFSS design and create a waveguide.

Perform required imports#

Perform the required imports.

[1]:

import os
import sys
from ansys.aedt.toolkits.common.backend.api import AEDTCommon
import ansys.aedt.core

Initialize toolkit#

Initialize the toolkit.

[2]:

toolkit = AEDTCommon()

Get toolkit properties#

Get the toolkit properties, which contain the project information.

[3]:

properties_from_backend = toolkit.get_properties()

[4]:

# ## Initialize AEDT
#
# Initialize AEDT using PyAEDT and then release it.
ansys.aedt.core.settings.enable_logger = False
app = ansys.aedt.core.Desktop(version=properties_from_backend["aedt_version"],
                     non_graphical=properties_from_backend["non_graphical"])
app.release_desktop(close_projects=False, close_on_exit=False)

[4]:

True

Get AEDT sessions#

Get AEDT sessions and select the first one.

[5]:

sessions = toolkit.aedt_sessions()
first_key, first_value = next(iter(sessions.items()))
if first_value == -1:
    use_grpc = False
    selected_process = first_key
else:
    use_grpc = True
    selected_process = first_value

Set properties#

Specify the AEDT session selection.

[6]:

new_properties = {"selected_process": selected_process, "use_grpc": use_grpc}
flag, msg = toolkit.set_properties(new_properties)

INFO - Updating internal properties.

Initialize AEDT#

Launch a new AEDT session in a thread.

[7]:

thread_msg = toolkit.launch_thread(toolkit.launch_aedt)

Wait for the toolkit thread to be idle#

Wait for the toolkit thread to be idle and ready to accept a new task.

[8]:

idle = toolkit.wait_to_be_idle()
if not idle:
    print("AEDT not initialized.")
    sys.exit()

Connect design#

Connect or create a new design.

[9]:

toolkit.connect_design("HFSS")

INFO - Updating internal properties.
INFO - Toolkit is connected to AEDT design.

[9]:

True

Get toolkit properties#

Get the toolkit properties, which contain the project information.

[10]:

new_properties = toolkit.get_properties()

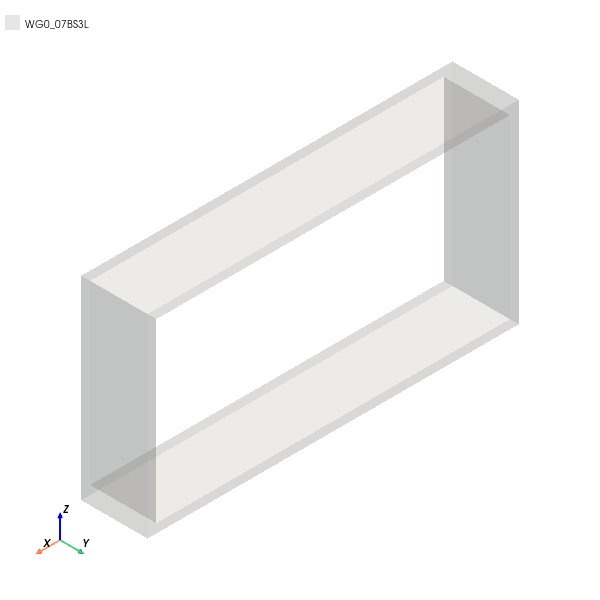

Create a waveguide#

Create a waveguide in the design.

[11]:

wg = toolkit.aedtapp.modeler.create_waveguide([0, 0, 0], 1)
model = toolkit.aedtapp.plot(show=False)
model.show_grid = False
model.plot(os.path.join(toolkit.aedtapp.working_directory, "Image.jpg"))

C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ansys\aedt\core\visualization\advanced\misc.py:43: UserWarning: The PyVista module is required to run functionalities of ansys.aedt.core.visualization.advanced.misc.
Install with

pip install pyvista
  warnings.warn(
C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ansys\aedt\core\visualization\plot\pyvista.py:53: UserWarning: The PyVista module is required to run some functionalities of PostProcess.
Install with

pip install pyvista
  warnings.warn(

PyAEDT ERROR: **************************************************************
PyAEDT ERROR:   File "<frozen runpy>", line 198, in _run_module_as_main
PyAEDT ERROR:   File "<frozen runpy>", line 88, in _run_code
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel_launcher.py", line 18, in <module>
PyAEDT ERROR:     app.launch_new_instance()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\traitlets\config\application.py", line 1075, in launch_instance
PyAEDT ERROR:     app.start()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelapp.py", line 739, in start
PyAEDT ERROR:     self.io_loop.start()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\tornado\platform\asyncio.py", line 205, in start
PyAEDT ERROR:     self.asyncio_loop.run_forever()
PyAEDT ERROR:   File "C:\actions-runner\_work\_tool\Python\3.12.10\x64\Lib\asyncio\base_events.py", line 645, in run_forever
PyAEDT ERROR:     self._run_once()
PyAEDT ERROR:   File "C:\actions-runner\_work\_tool\Python\3.12.10\x64\Lib\asyncio\base_events.py", line 1999, in _run_once
PyAEDT ERROR:     handle._run()
PyAEDT ERROR:   File "C:\actions-runner\_work\_tool\Python\3.12.10\x64\Lib\asyncio\events.py", line 88, in _run
PyAEDT ERROR:     self._context.run(self._callback, *self._args)
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 545, in dispatch_queue
PyAEDT ERROR:     await self.process_one()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 534, in process_one
PyAEDT ERROR:     await dispatch(*args)
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 437, in dispatch_shell
PyAEDT ERROR:     await result
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\ipkernel.py", line 362, in execute_request
PyAEDT ERROR:     await super().execute_request(stream, ident, parent)
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 778, in execute_request
PyAEDT ERROR:     reply_content = await reply_content
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\ipkernel.py", line 449, in do_execute
PyAEDT ERROR:     res = shell.run_cell(
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\zmqshell.py", line 549, in run_cell
PyAEDT ERROR:     return super().run_cell(*args, **kwargs)
PyAEDT ERROR:   File "C:\Users\ansys\AppData\Local\Temp\ipykernel_9084\1714394731.py", line 4, in <module>
PyAEDT ERROR:     model.plot(os.path.join(toolkit.aedtapp.working_directory, "Image.jpg"))
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ansys\aedt\core\visualization\plot\pyvista.py", line 1379, in plot
PyAEDT ERROR:     self.populate_pyvista_object()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ansys\aedt\core\visualization\plot\pyvista.py", line 1257, in populate_pyvista_object
PyAEDT ERROR:     self.pv = pv.Plotter(notebook=self.is_notebook, off_screen=self.off_screen, window_size=self.windows_size)
PyAEDT ERROR:               ^^
PyAEDT ERROR: Name 'pv' is not defined on populate_pyvista_object
PyAEDT ERROR: **************************************************************
PyAEDT ERROR: **************************************************************
PyAEDT ERROR:   File "<frozen runpy>", line 198, in _run_module_as_main
PyAEDT ERROR:   File "<frozen runpy>", line 88, in _run_code
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel_launcher.py", line 18, in <module>
PyAEDT ERROR:     app.launch_new_instance()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\traitlets\config\application.py", line 1075, in launch_instance
PyAEDT ERROR:     app.start()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelapp.py", line 739, in start
PyAEDT ERROR:     self.io_loop.start()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\tornado\platform\asyncio.py", line 205, in start
PyAEDT ERROR:     self.asyncio_loop.run_forever()
PyAEDT ERROR:   File "C:\actions-runner\_work\_tool\Python\3.12.10\x64\Lib\asyncio\base_events.py", line 645, in run_forever
PyAEDT ERROR:     self._run_once()
PyAEDT ERROR:   File "C:\actions-runner\_work\_tool\Python\3.12.10\x64\Lib\asyncio\base_events.py", line 1999, in _run_once
PyAEDT ERROR:     handle._run()
PyAEDT ERROR:   File "C:\actions-runner\_work\_tool\Python\3.12.10\x64\Lib\asyncio\events.py", line 88, in _run
PyAEDT ERROR:     self._context.run(self._callback, *self._args)
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 545, in dispatch_queue
PyAEDT ERROR:     await self.process_one()
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 534, in process_one
PyAEDT ERROR:     await dispatch(*args)
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 437, in dispatch_shell
PyAEDT ERROR:     await result
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\ipkernel.py", line 362, in execute_request
PyAEDT ERROR:     await super().execute_request(stream, ident, parent)
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\kernelbase.py", line 778, in execute_request
PyAEDT ERROR:     reply_content = await reply_content
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\ipkernel.py", line 449, in do_execute
PyAEDT ERROR:     res = shell.run_cell(
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ipykernel\zmqshell.py", line 549, in run_cell
PyAEDT ERROR:     return super().run_cell(*args, **kwargs)
PyAEDT ERROR:   File "C:\Users\ansys\AppData\Local\Temp\ipykernel_9084\1714394731.py", line 4, in <module>
PyAEDT ERROR:     model.plot(os.path.join(toolkit.aedtapp.working_directory, "Image.jpg"))
PyAEDT ERROR:   File "C:\actions-runner\_work\pyaedt-toolkits-common\pyaedt-toolkits-common\.venv\Lib\site-packages\ansys\aedt\core\visualization\plot\pyvista.py", line 1394, in plot
PyAEDT ERROR:     self.pv.add_key_event("s", s_callback)
PyAEDT ERROR:     ^^^^^^^^^^^^^^^^^^^^^
PyAEDT ERROR: 'nonetype' object has no attribute 'add_key_event' on plot
PyAEDT ERROR: Method arguments:
PyAEDT ERROR:     export_image_path = C:\Users\ansys\Documents\Ansoft\Project2748.pyaedt\HFSS_EOV3D6\Image.jpg
PyAEDT ERROR: **************************************************************

[11]:

False

Save and release AEDT#

Save and release AEDT.

[12]:

toolkit.release_aedt(True, True)

INFO - AEDT is released.

[12]:

True
